Real HVAC work. The details that matter.

Every photo in this gallery was taken by me on jobs I personally worked on at different points in my HVAC career. These are real systems, real problems, and the details I look for when deciding what needs attention—and what can still be repaired.

Maintenance

What equipment condition can tell you—and when to act.

Maintenance 01

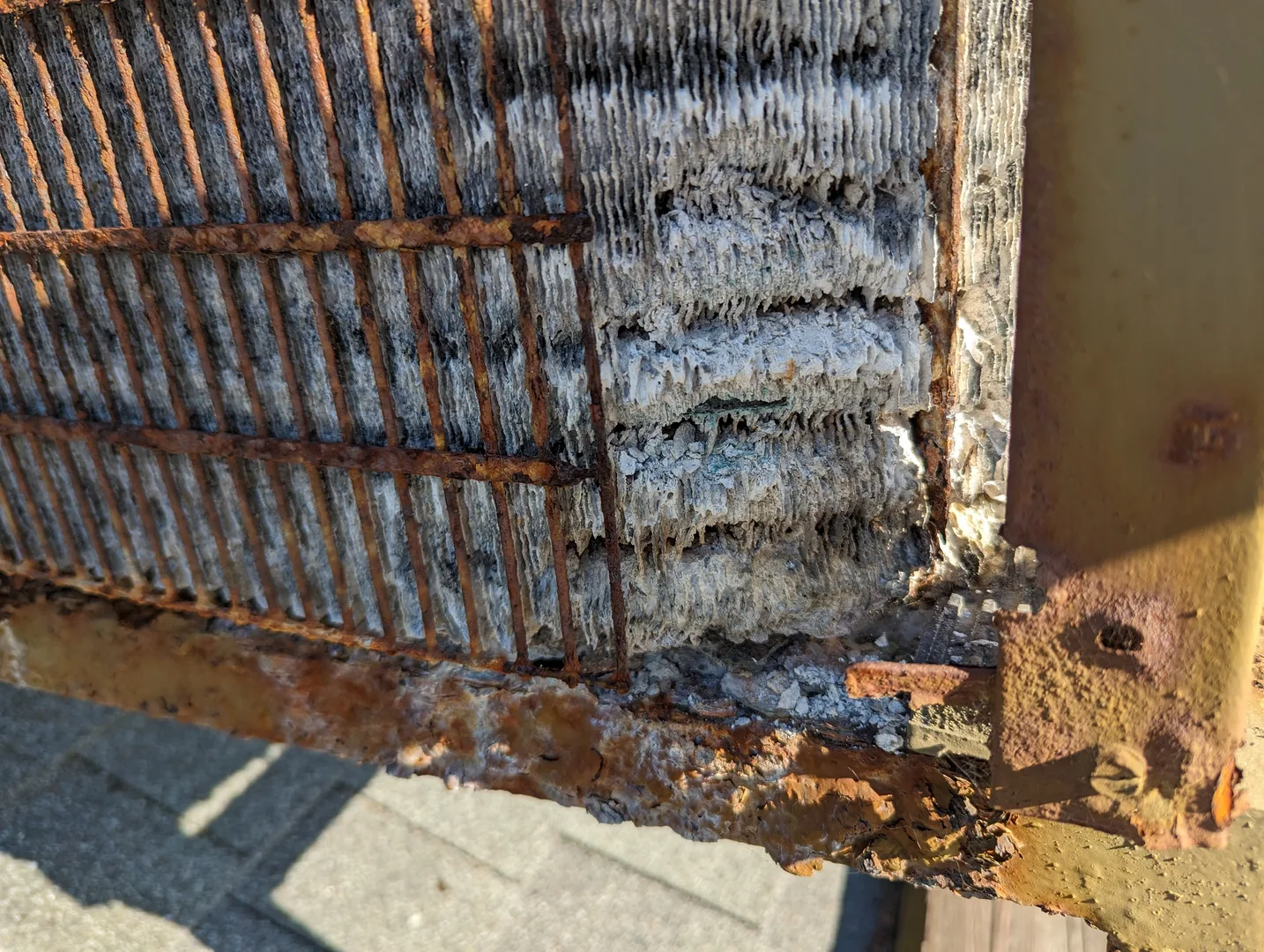

Stage 3: Beyond cleaning

I use three broad stages to explain the condition of an outdoor unit's condenser coil. This is Stage 3: extensive corrosion and deterioration of the heat-transfer surface.

Cleaning cannot replace metal that has deteriorated away. In a coil this far gone, repairing an individual refrigerant leak would not restore the rest of the coil or make it a repair I could stand behind. Some manufacturers offer a complete replacement coil, but availability, labor, refrigerant, and the condition of the remaining equipment all matter. In cases like this, a coil replacement is often difficult to justify financially.

Severe coil deterioration
The damaged fins and corroded structure are the issue, not simply surface dirt.

Maintenance 02

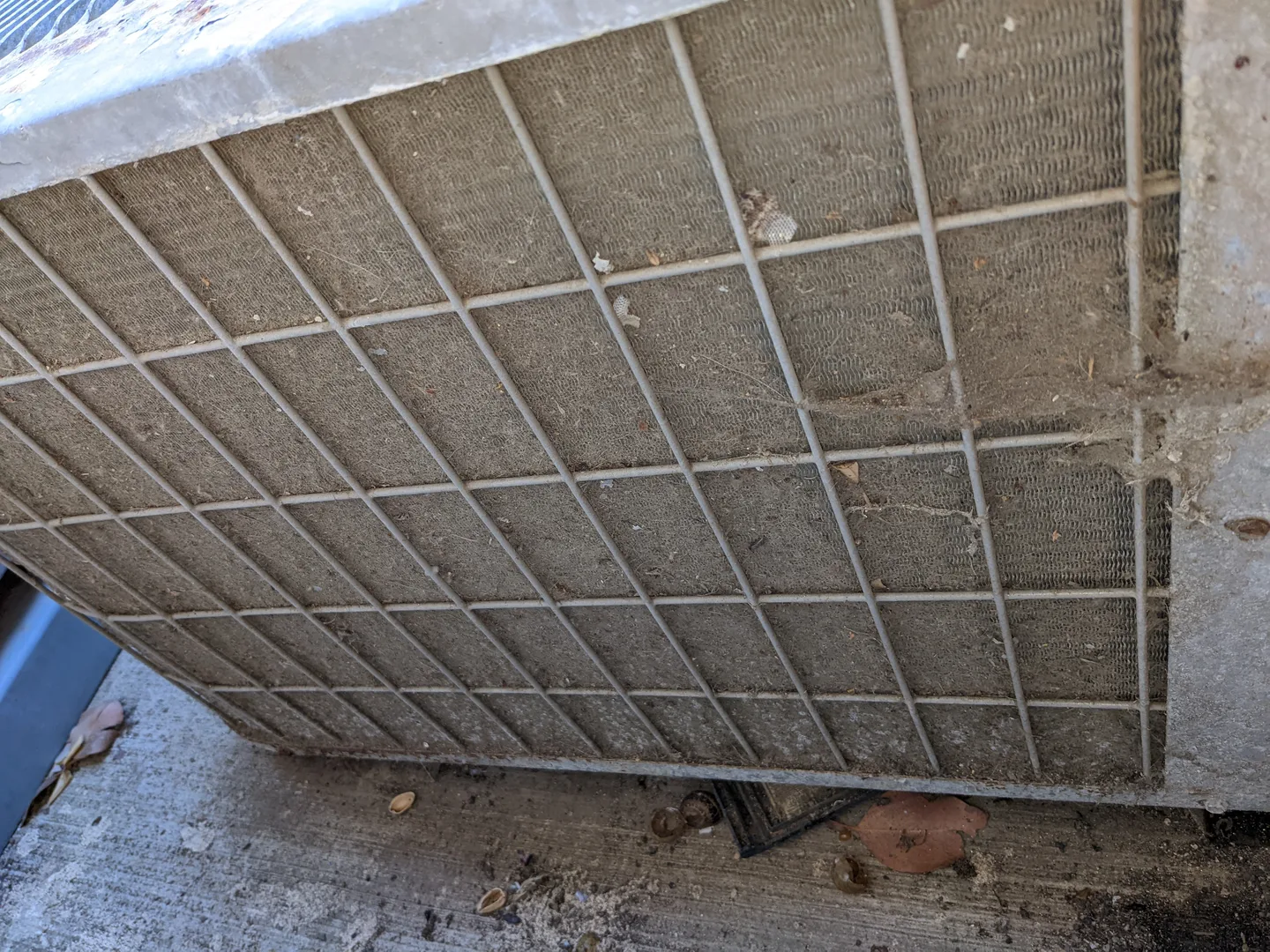

Stage 2: More than a little dust

This is what I call Stage 2. This outdoor unit had gone years without maintenance. To a homeowner, it may look like a dusty condenser that has always been that way. The buildup is gradual, so it is easy to stop noticing it.

The condenser coil must release heat outdoors while the compressor circulates refrigerant through the system. Heavy buildup gets in the way of that heat transfer. The system can run longer, use more electricity, and put additional strain on the compressor—even while it still cools the house.

This level of buildup deserves prompt cleaning and a full system check. It does not automatically mean the equipment is finished. If the coil and the rest of the system are still sound, proper care can make a real difference.

Heavy buildup across the coil
This is a service issue, not a cosmetic one.

Start caring for equipment while it is in good condition

Maintenance 03

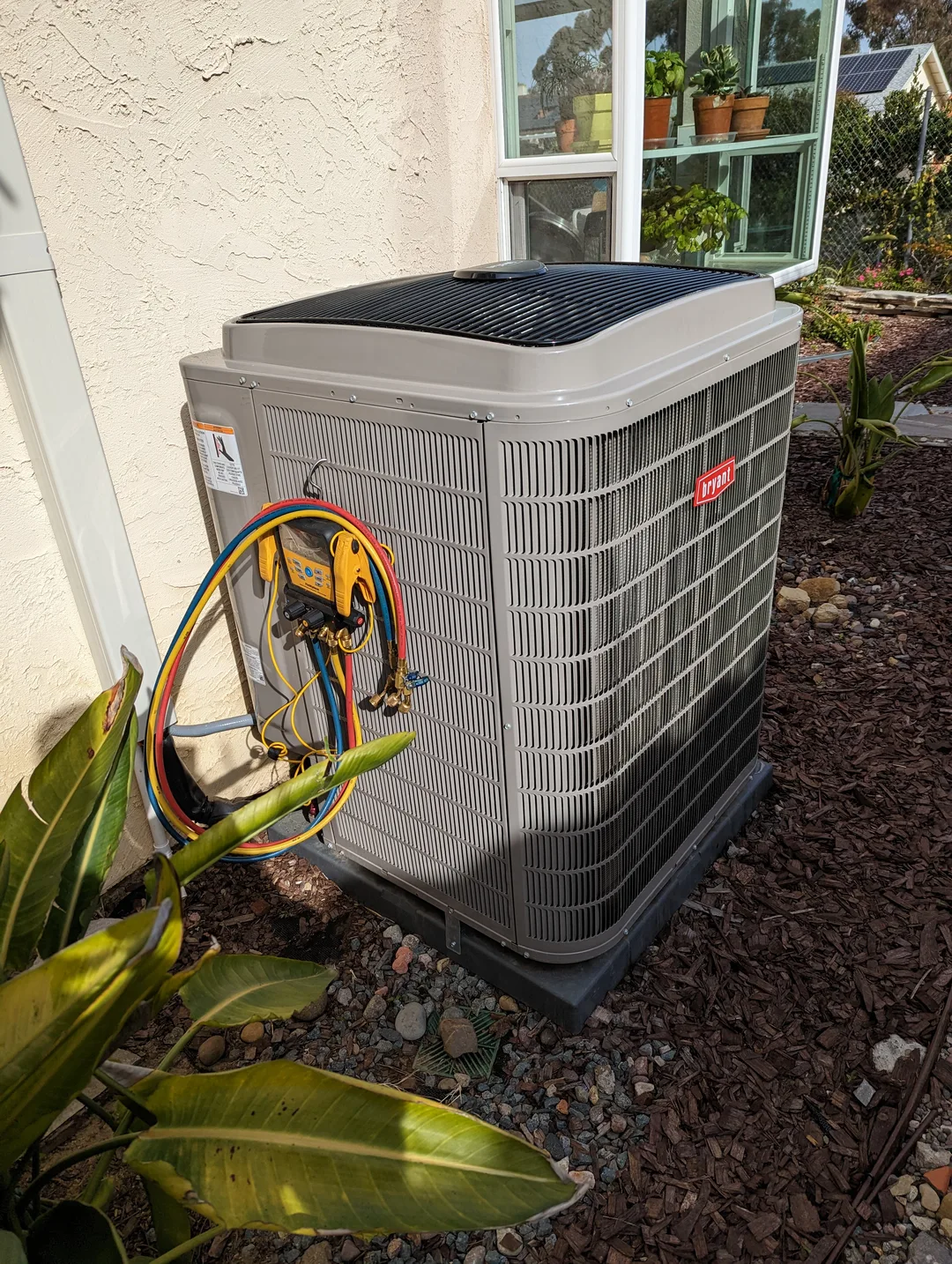

Stage 1: Keep it this way

Stage 1 is an outdoor unit that is new—or still looks well cared for. After paying for a new system, some homeowners wait for the first breakdown, visible corrosion, or a drop in performance before arranging maintenance. I recommend starting in the first year.

I also do not believe every home needs exactly the same cleaning schedule. Equipment, location, exposure, and operating hours all matter. After the first visit, I like to reassess the unit after a season of use and recommend a schedule that fits the actual conditions and the manufacturer's requirements.

Some outdoor coils need cleaning twice a year. Others stay clean much longer. A thorough cleaning every two years may be enough for some lightly used, well-protected units; that is different from skipping routine system inspections. The goal is useful maintenance, with the work matched to your equipment.

A coil worth keeping clean
Good condition is a reason to protect the equipment, not to forget about it.

Filters: When is dirty too dirty?

The air filter is one of the most important HVAC components a homeowner can usually replace without a service call. But when is it actually due? How dirty is too dirty? And which filter is appropriate for your system?

These examples show why I look at the condition of the filter and the equipment—not just the date on a calendar.

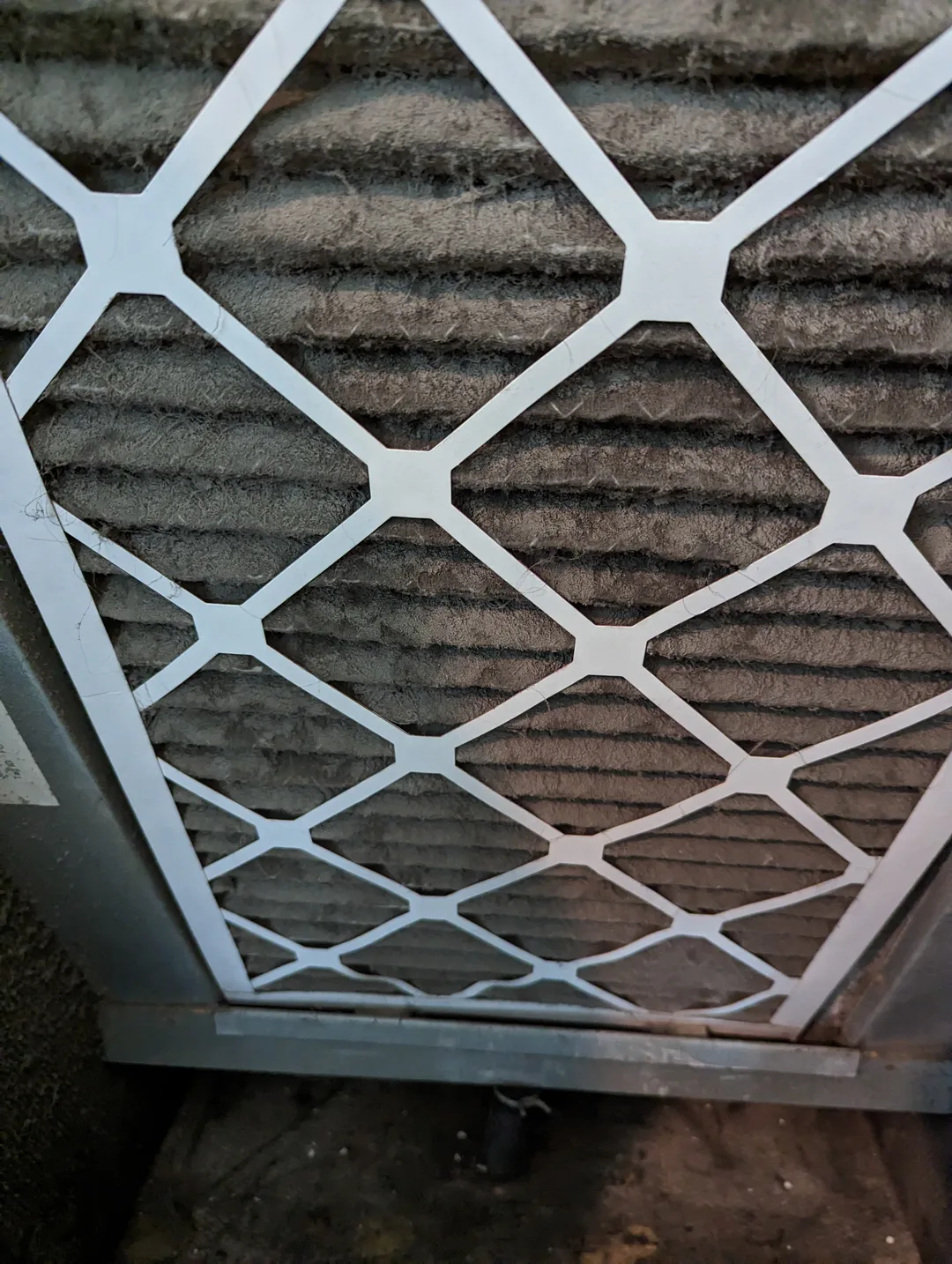

A filter well past its replacement point

Maintenance 04

Long overdue

This filter should have been replaced well before it reached this condition. When I find buildup like this, I recommend checking the full HVAC system as well as replacing the filter. Restricted airflow may already have affected how the equipment runs; changing the filter alone does not tell us whether everything else is healthy.

Heavy dust loading
Replace the filter and check system operation.

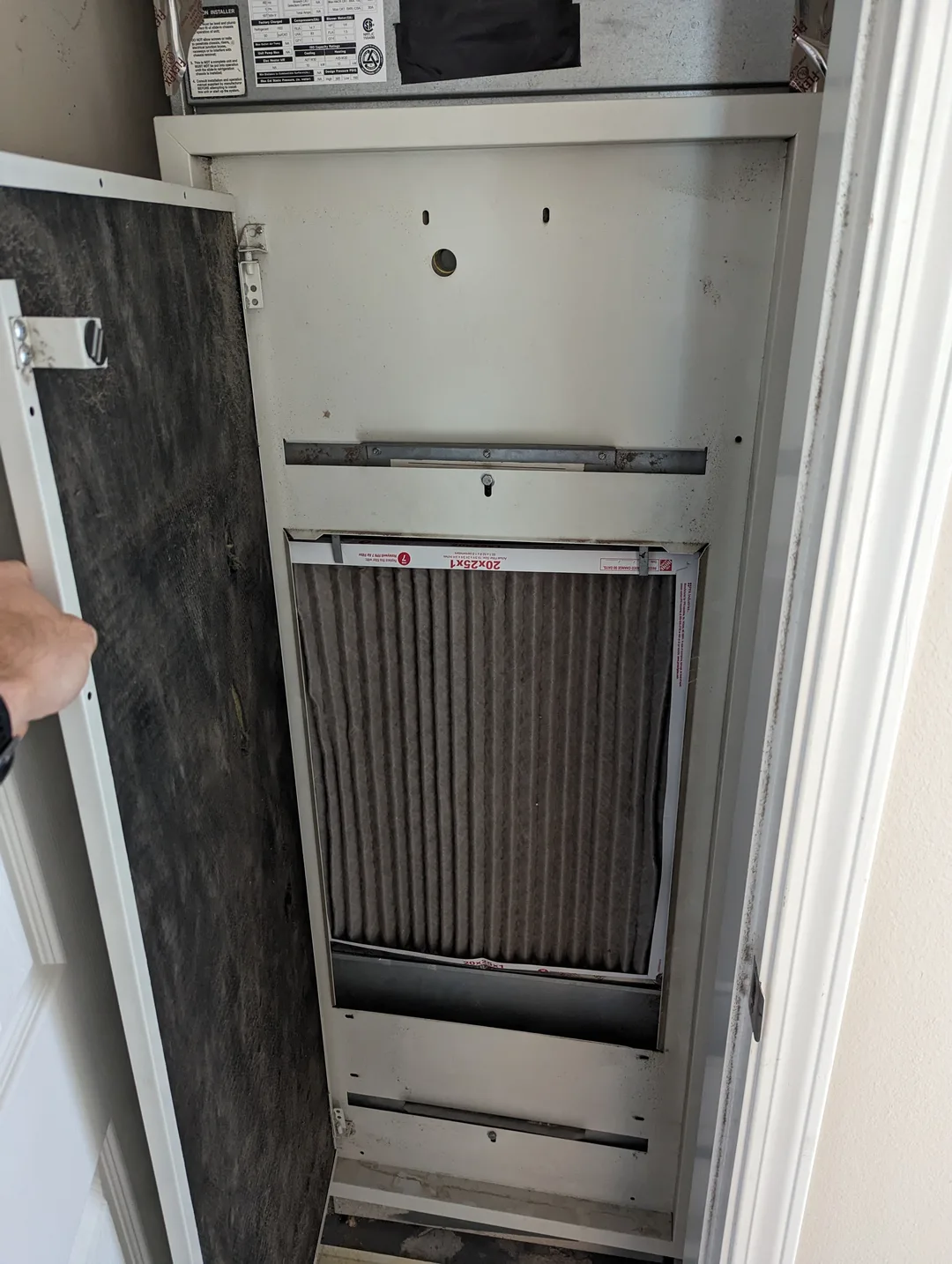

A dirty filter found during a service visit

Maintenance 05

Due for a change

This homeowner had also waited too long to replace the filter. In this case, I did not consider the condition as severe as the previous example, but it was still time for a fresh filter. There is little benefit in waiting until airflow or comfort becomes an obvious problem.

A filter past its replacement point
Less severe does not mean it should stay in service.

A relatively clean filter for comparison

Maintenance 06

Still fairly clean

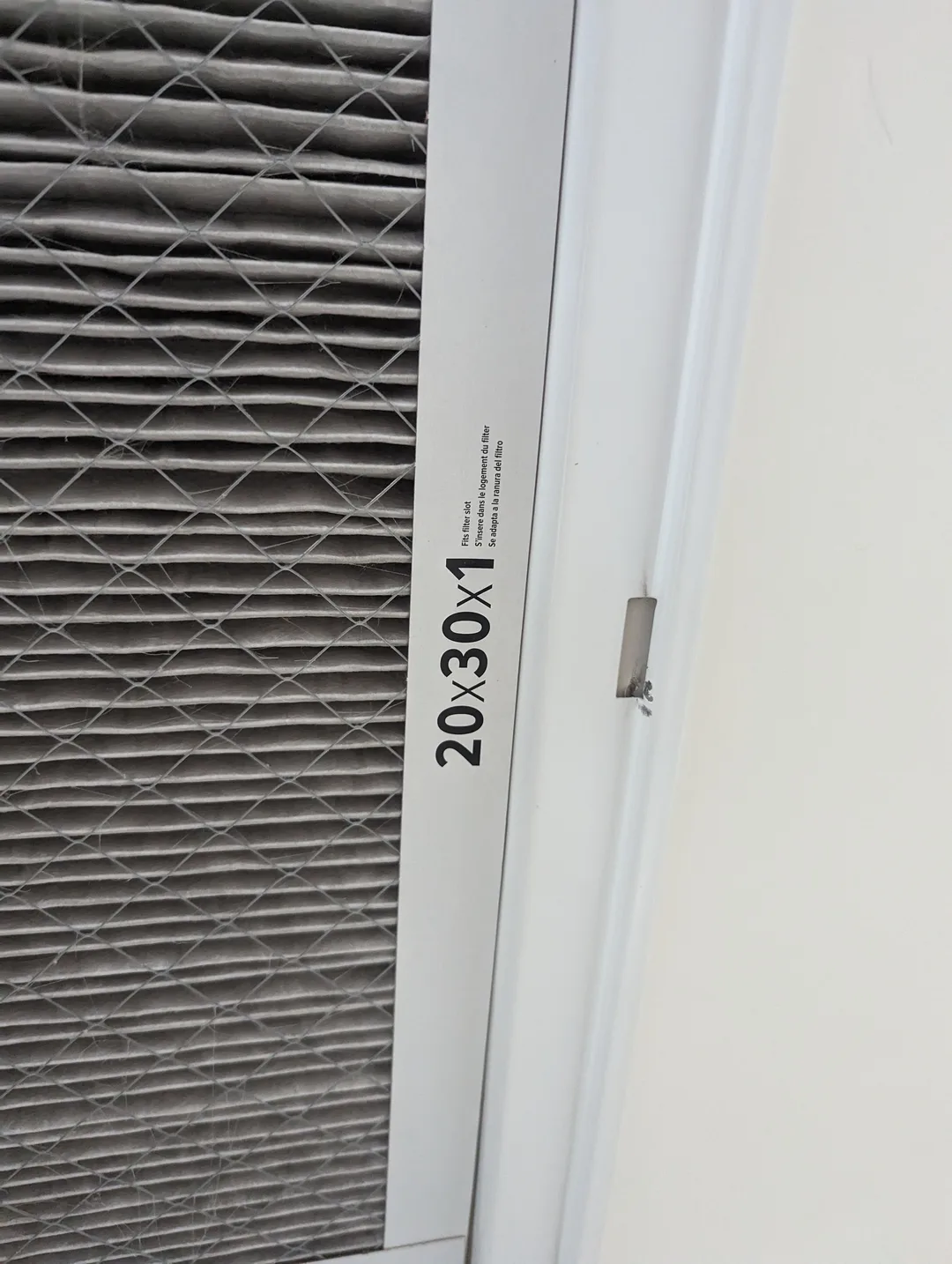

This filter is relatively clean compared with the others and may have had some useful life left. For a standard disposable filter, if it is due and you are debating whether to stretch it a little longer, I would replace it. These filters are generally inexpensive, and replacement is usually a simple homeowner task.

Use the correct size and a filter suitable for your system. A filter's appearance is useful, but its type, recommended interval, and effect on airflow matter too.

Relatively light loading
The cleaner comparison.

Explore the Blog

A guide to filter choices and problems caused by overdue or missing filters is on the way.

Ductwork

The hidden air paths that make a visible difference in comfort.

Ductwork 01

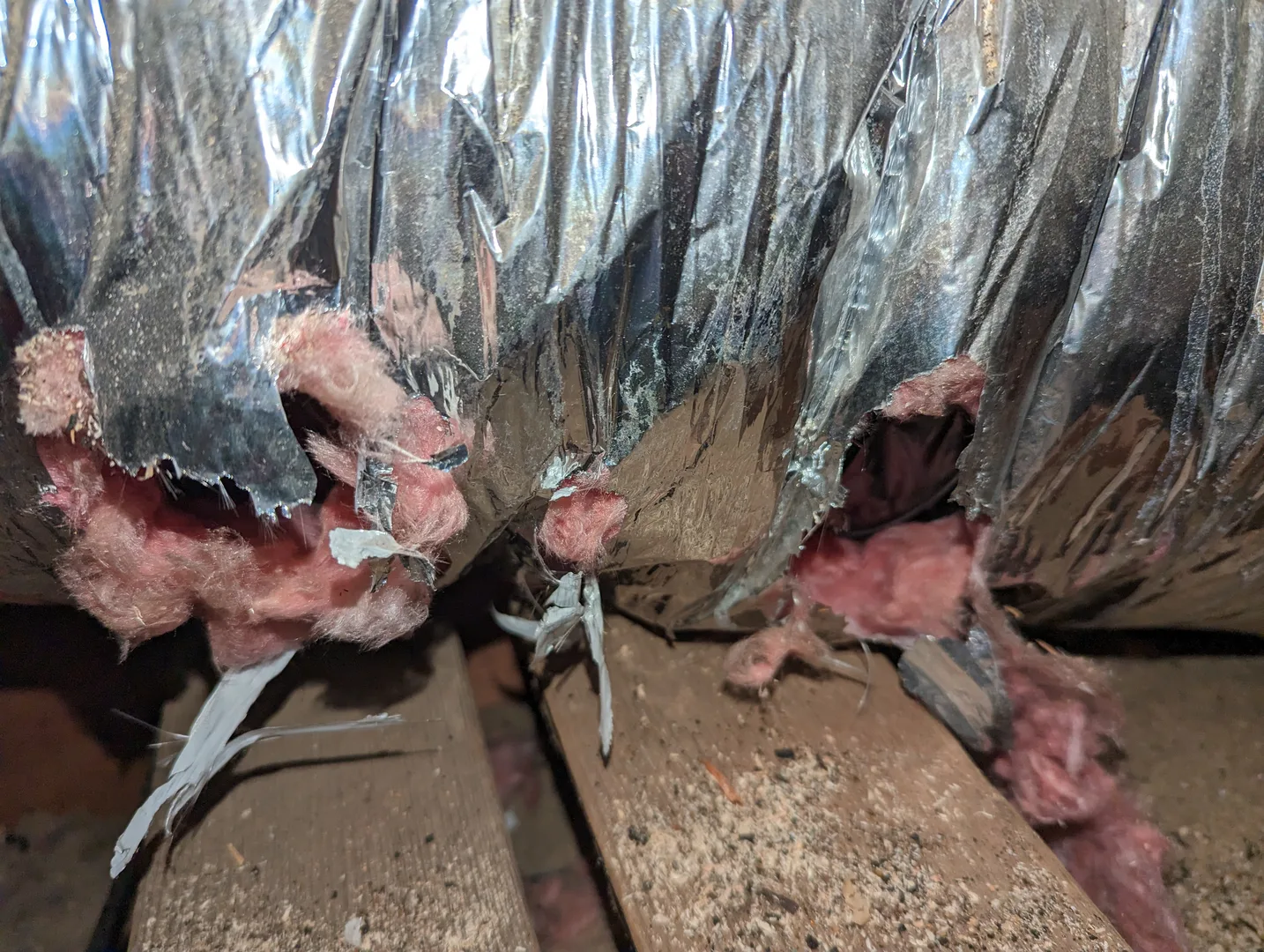

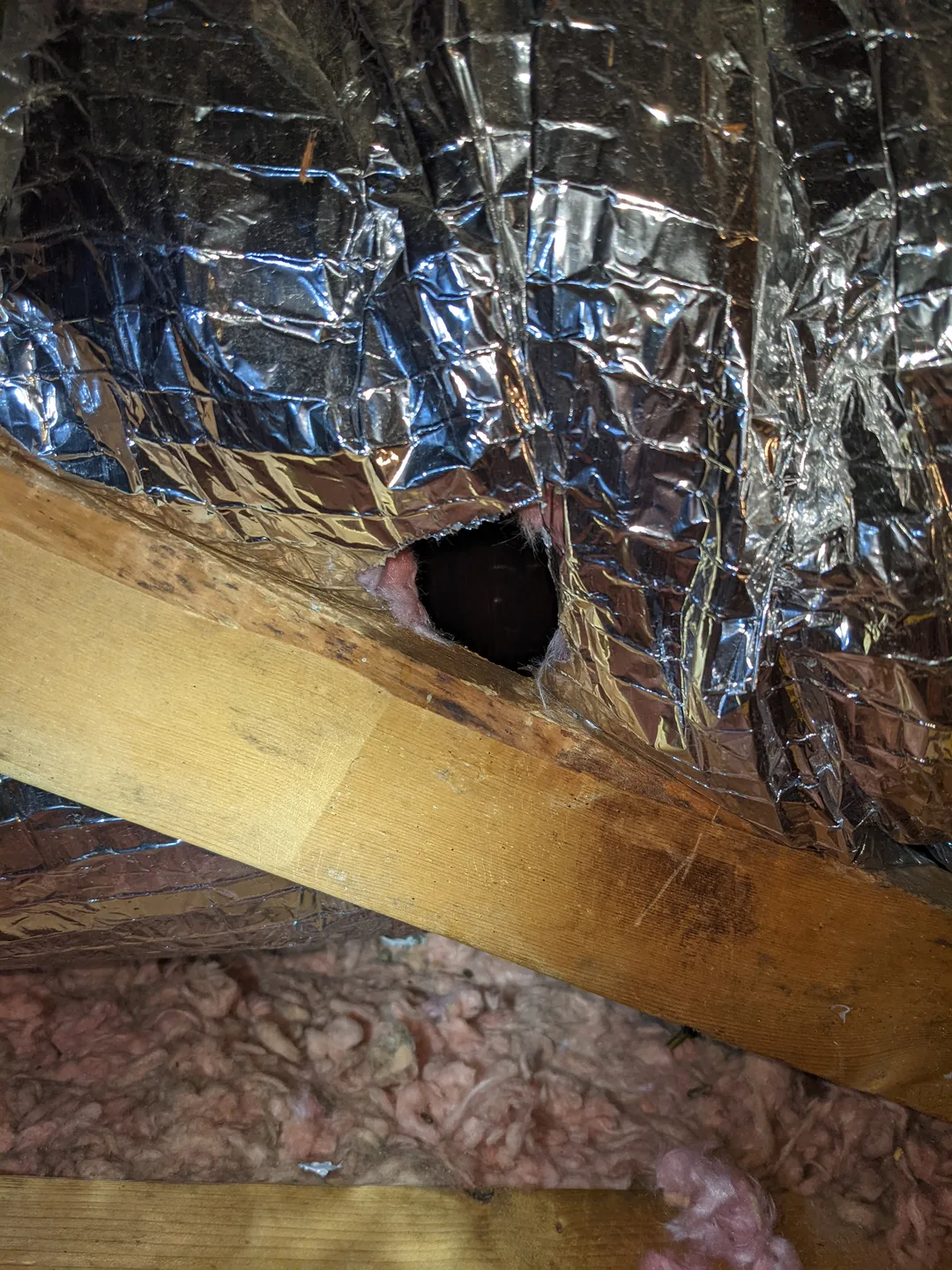

Rodent damage rarely stops at one hole

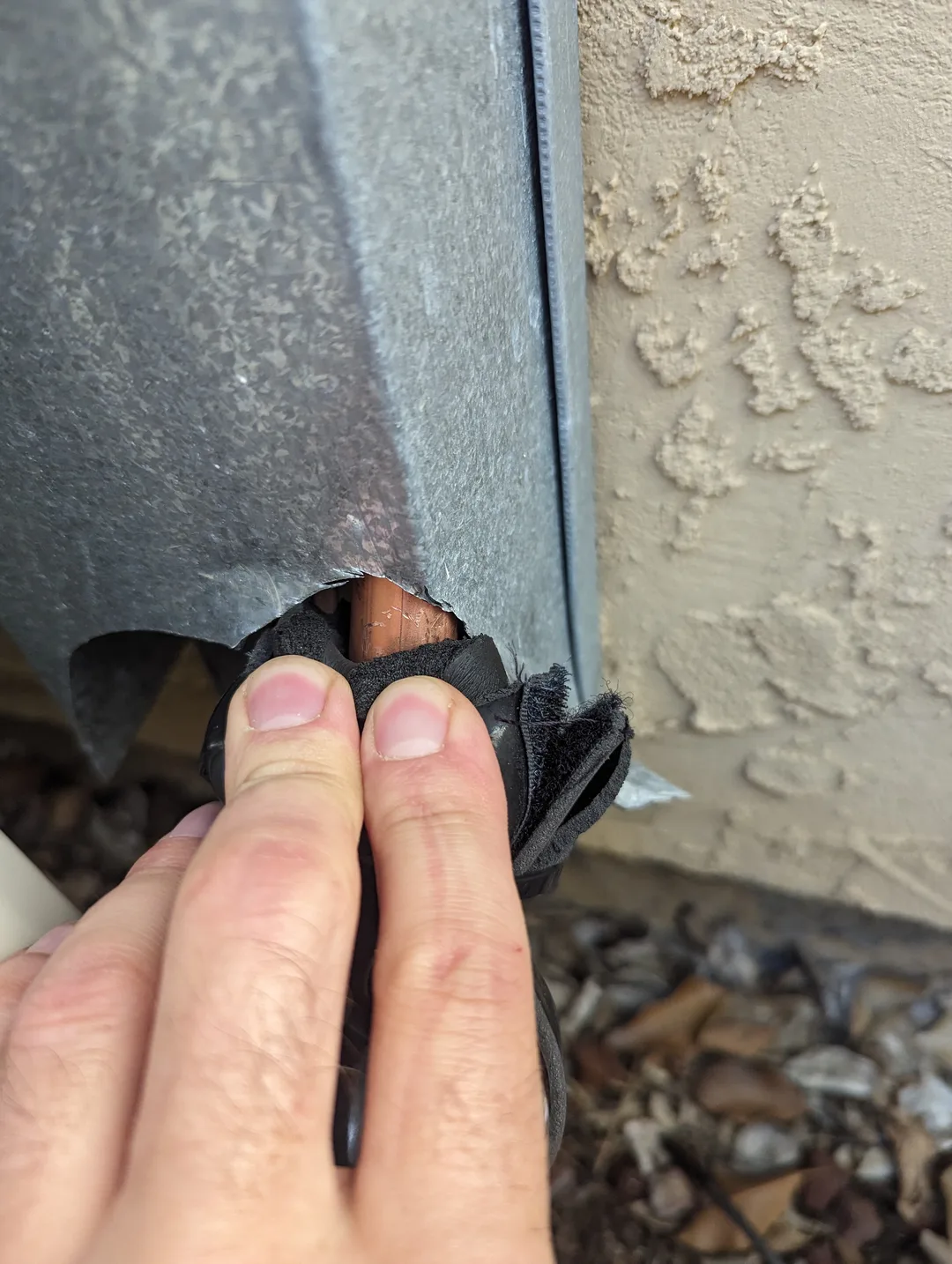

These are examples of rodent damage I found in ductwork. If you discover a hole like this, it is worth inspecting the entire accessible duct system. The visible damage may be only one part of the problem.

My first recommendation is to involve a pest-control professional and address the rodent activity. Then the damaged ducts and insulation can be assessed and repaired. Fixing one hole while the cause remains is an invitation to do the same repair again.

Rodent-damaged ductwork
Look beyond the first visible hole.

Ductwork 02

Foil tape cannot fix a collapsed duct

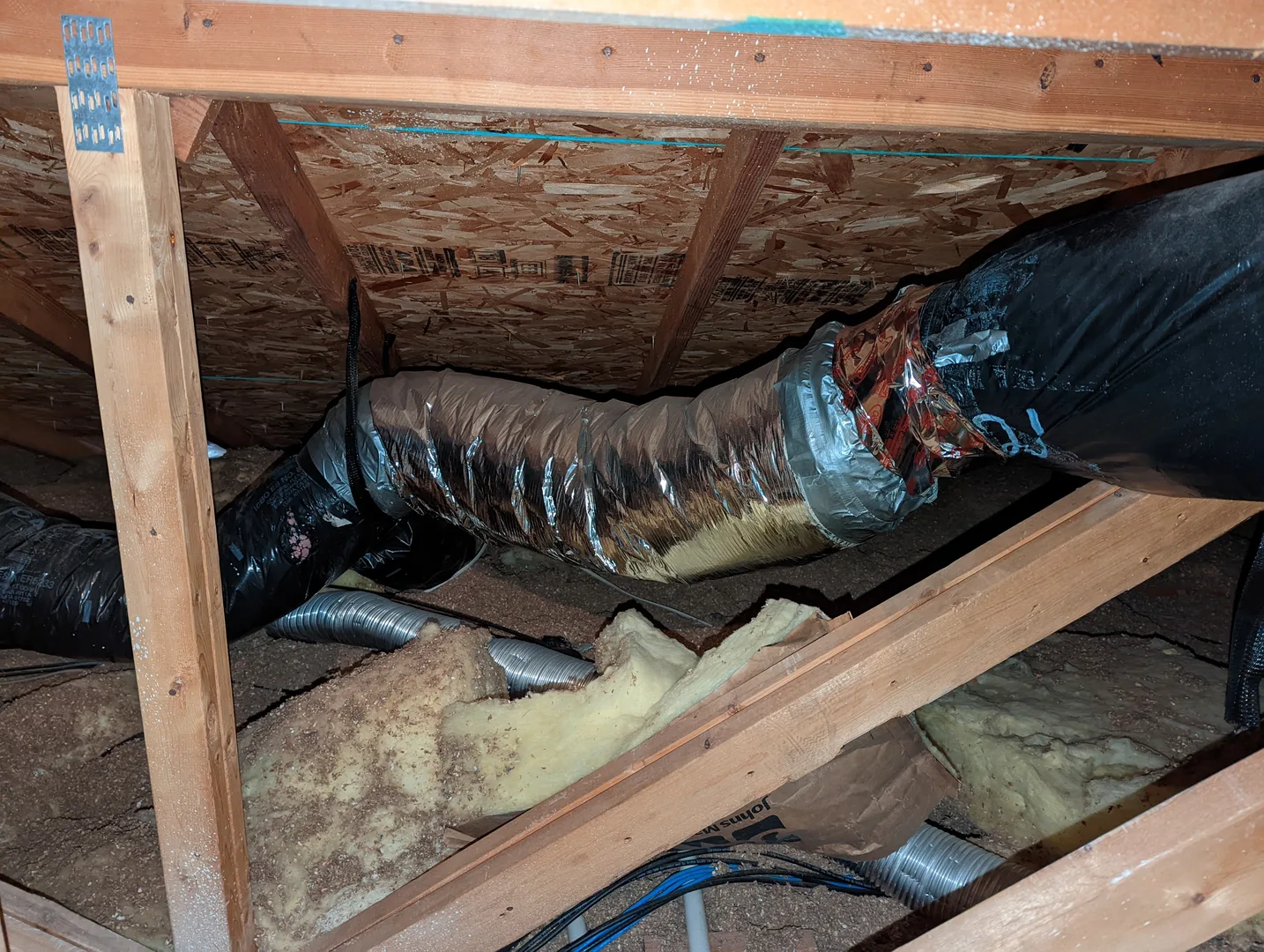

This was a poorly executed repair. The large duct takes sharp turns, and the shiny taped section narrows the air path. On inspection, I found that the inner liner had also collapsed and was blocking airflow.

A duct repair has to restore the air passage as well as seal and insulate it. A tidy-looking wrap on the outside does not help if air cannot get through the inside.

Restricted repair section
The taped neck and sharp turn concealed a collapsed inner liner.

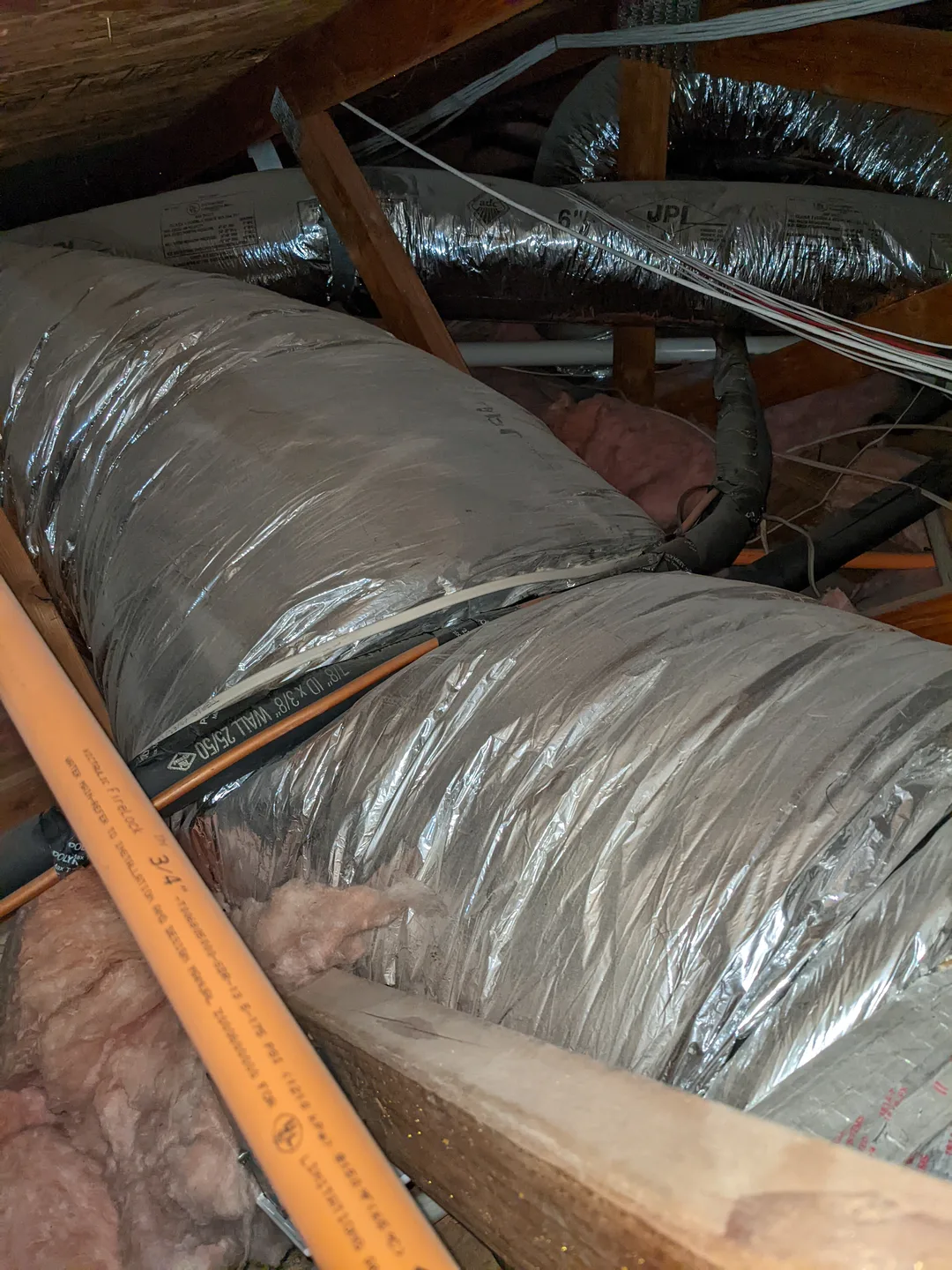

Refrigerant lines resting on flexible duct

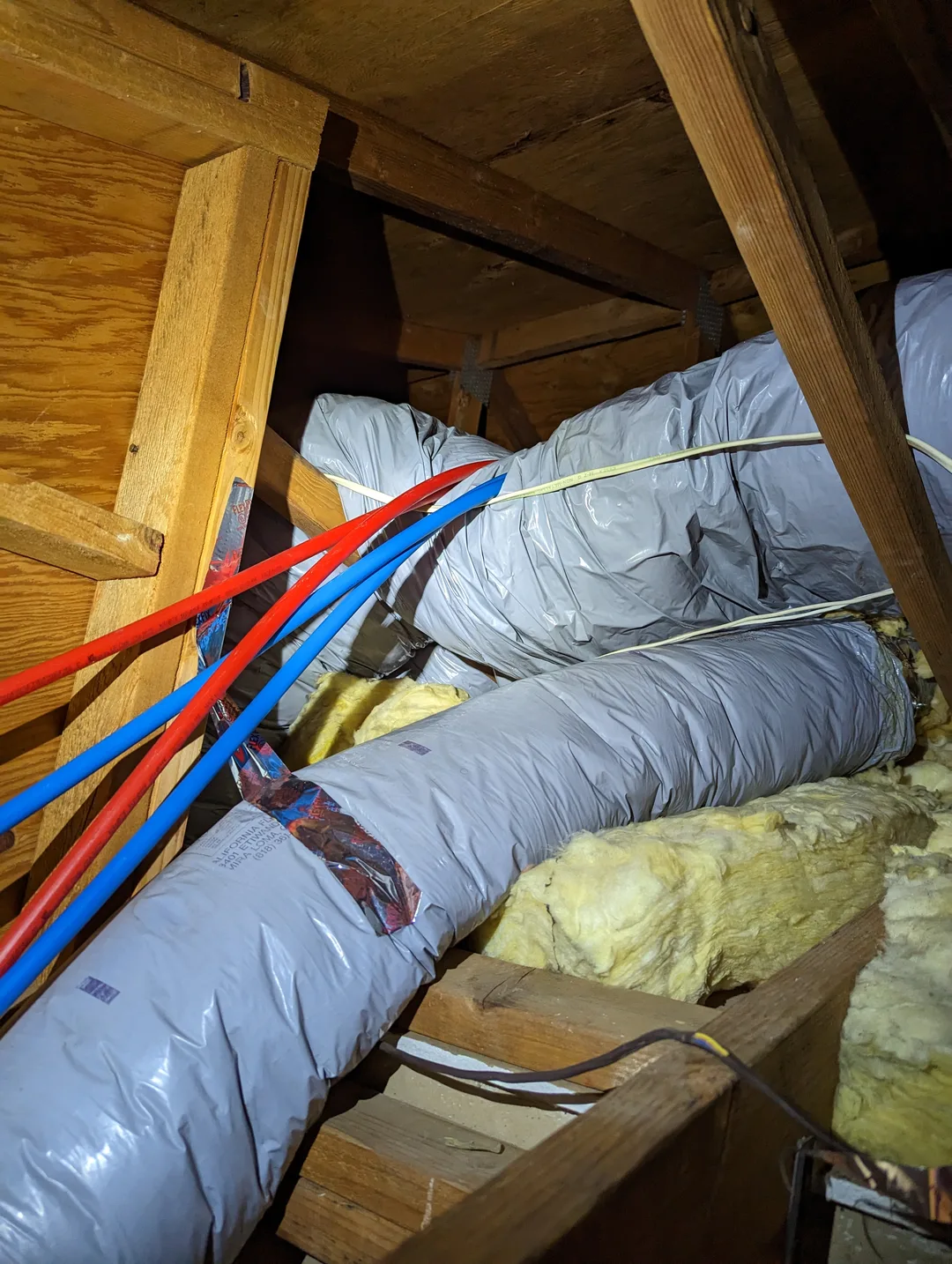

Plumbing pipes pressing down on ductwork

Ductwork 03

Ductwork is not a pipe support

In the first photo, refrigerant lines rest on a flexible duct and compress it. This appears to have started during the HVAC installation. In the second, plumbing pipes had been laid across the ductwork with the same result: the air passage was being squeezed by something the duct was never meant to support.

These are the kinds of hidden details I find far too often in attics. The load can worsen the restriction over time. Pipes and cables need their own appropriate supports, and ducts need space to hold their intended shape.

My advice: hire people who take the hidden work seriously, and ask for photos of work in hard-to-access areas. You should be able to see what was done even if you do not climb into the attic yourself.

Pipes compressing flexible ductwork
The air passage needs room to keep its intended shape.

Ductwork 04

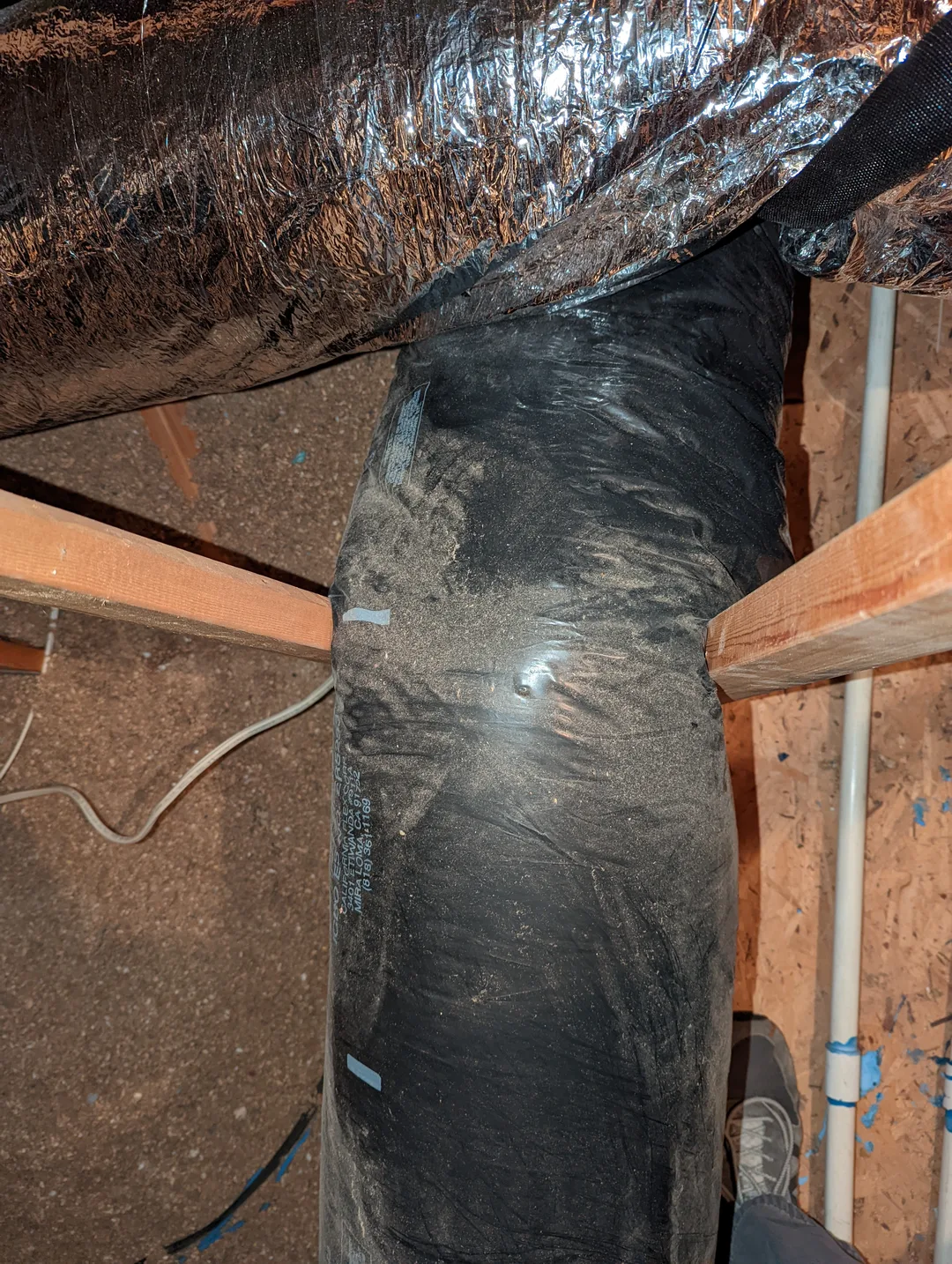

Why the bedroom barely got any air

The customer called because very little air was reaching the bedroom. This older flexible duct had been laid between V-shaped framing members. It appears to have gradually sagged and compressed under its own weight until the restriction became impossible to ignore.

A damaged section like this often needs more than pulling it back into shape. Depending on its condition, the repair may involve a properly sized rigid connector, replacement of the affected section, or replacement of the duct run—with the support corrected so the problem does not return.

A collapsed air path
The duct is pinched between the framing.

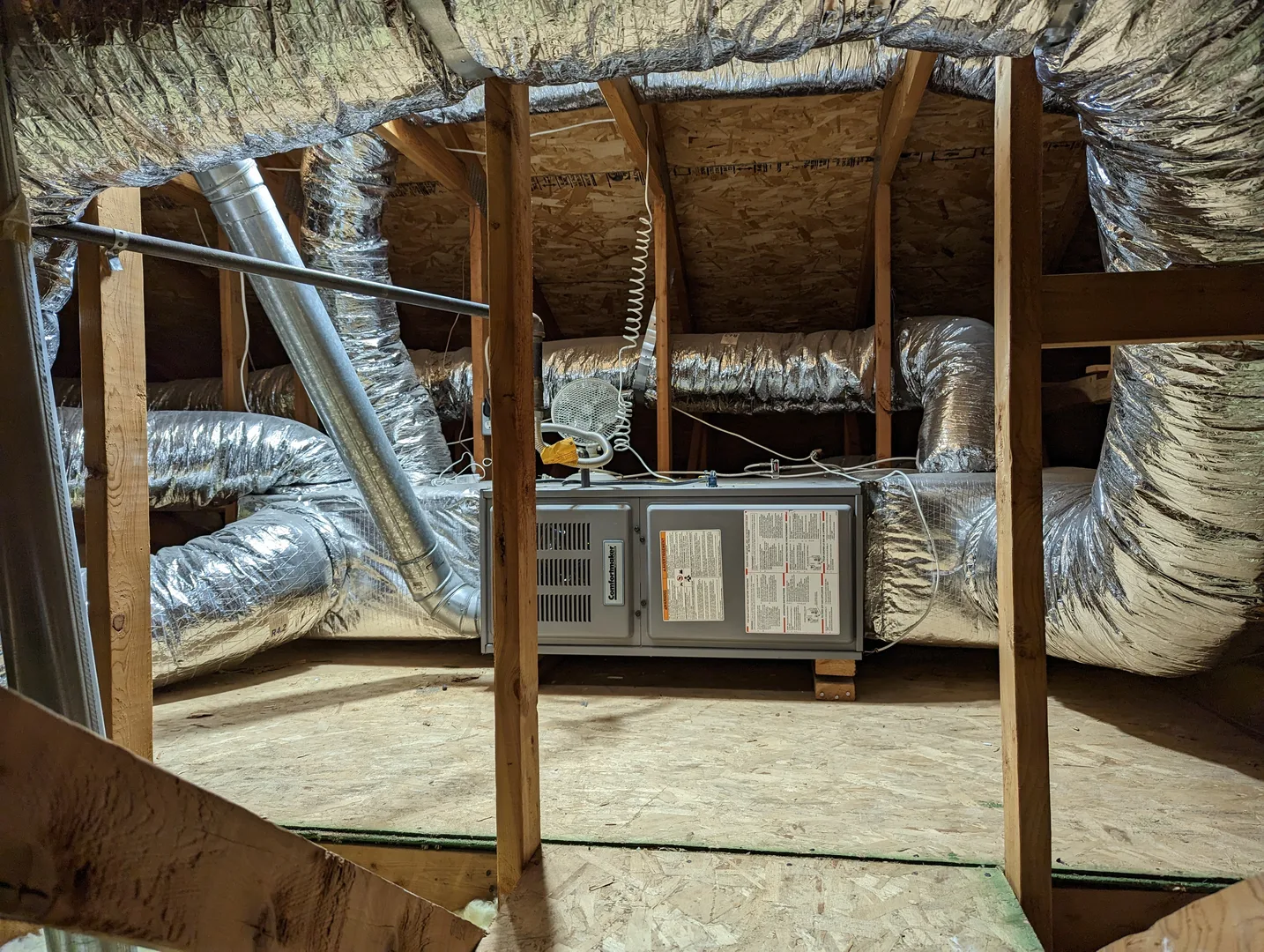

An orderly attic installation and clear service access

Ductwork 05

The kind of attic I like to see

A clean attic, orderly ductwork, and an installation that was clearly treated with care. This furnace was more than ten years old when I took the photo, yet it still looked and operated remarkably well.

If every installation were kept to this standard, you might put me out of work. Fortunately for me—and unfortunately for homeowners—I do not come across this level of care nearly often enough.

Orderly installation and service access
A positive example of care that lasts.

Repairs

Find the fault. Understand the options. Repair what makes sense.

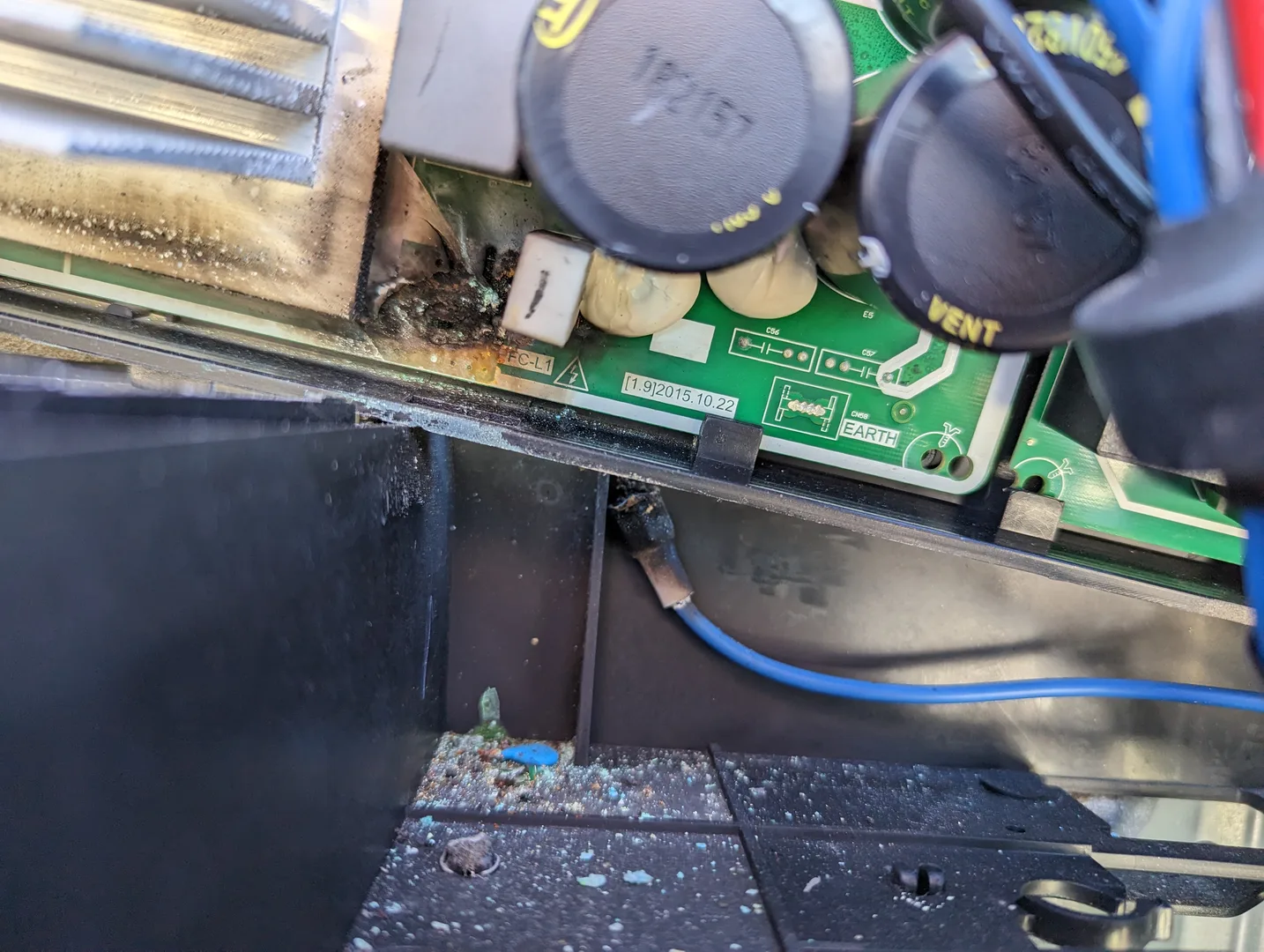

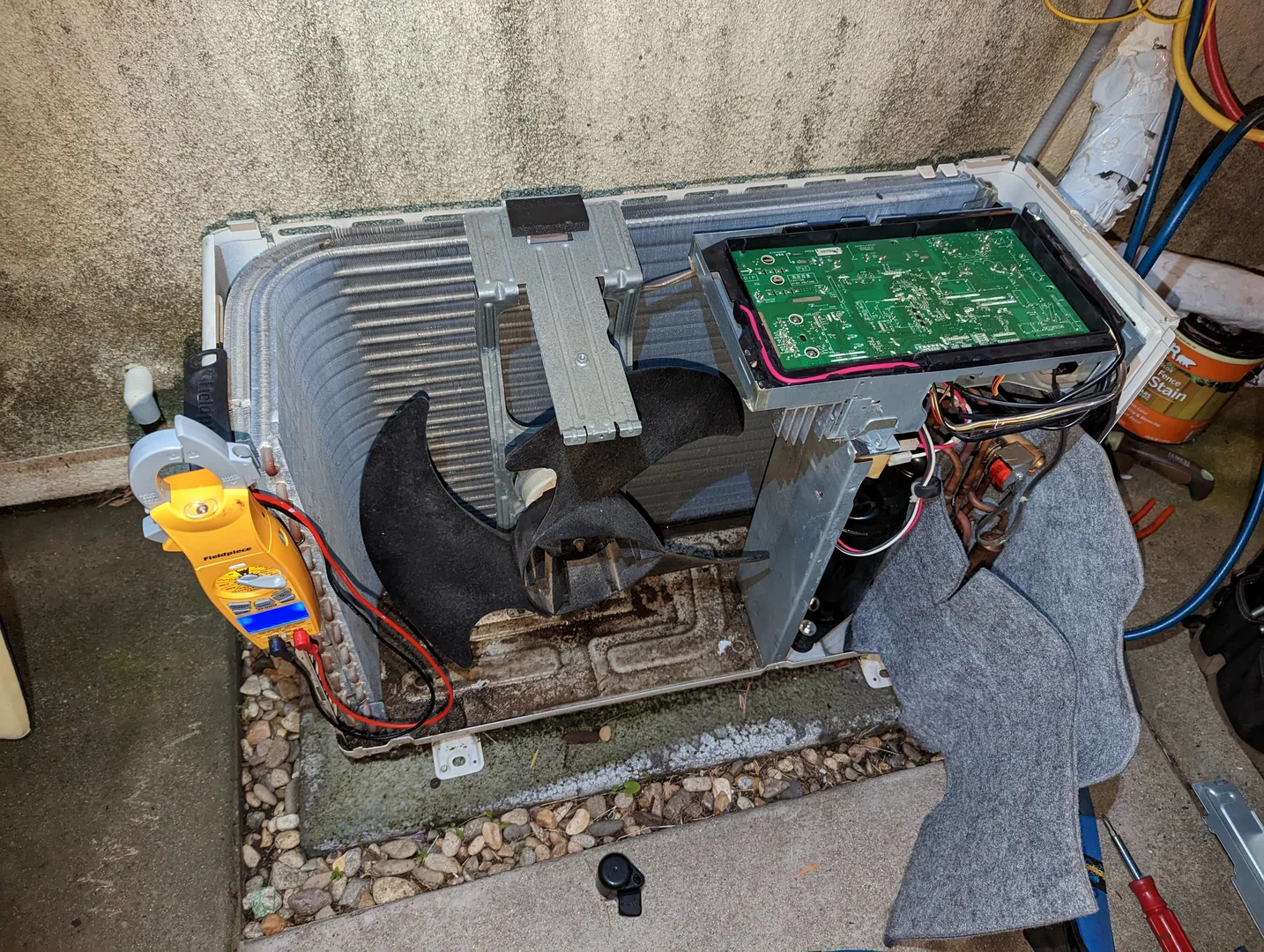

Electrical diagnosis inside an outdoor unit

Repairs 01

More electronics. More to diagnose.

Electrical problems have always been a substantial part of HVAC repair. Modern equipment still has the familiar wiring and connection issues, but it also relies on more sensors, control boards, and power electronics.

Those components can improve comfort and efficiency and help protect the equipment. They also add more things to test when something stops working, and a failed electronic component can be expensive. That is why I want a clear diagnosis before recommending a part—or an entire replacement system.

Electrical components under diagnosis
Finding the fault comes before recommending parts.

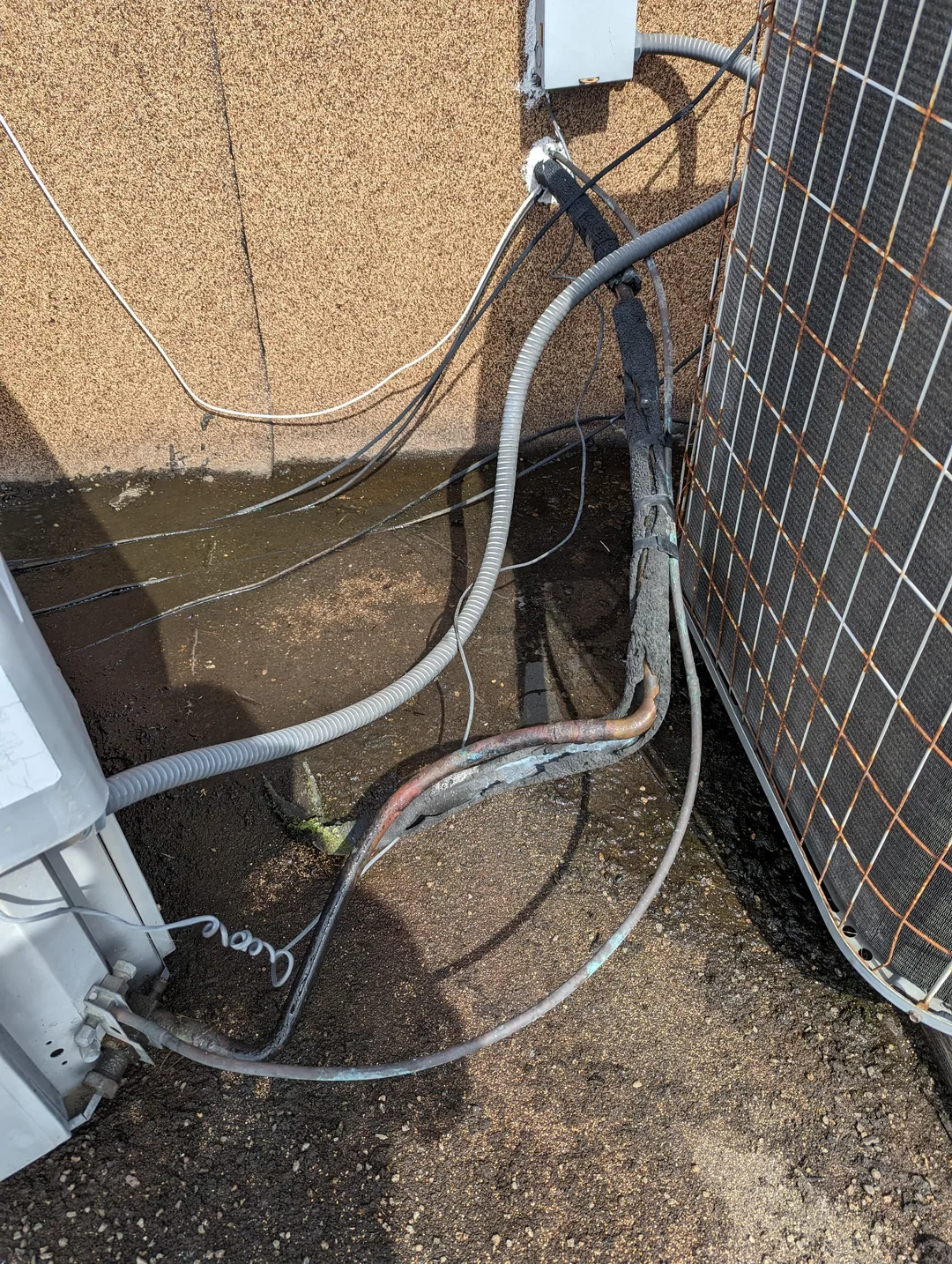

Oil and frost around refrigerant connections

Repairs 02

Oil and frost tell me where to look

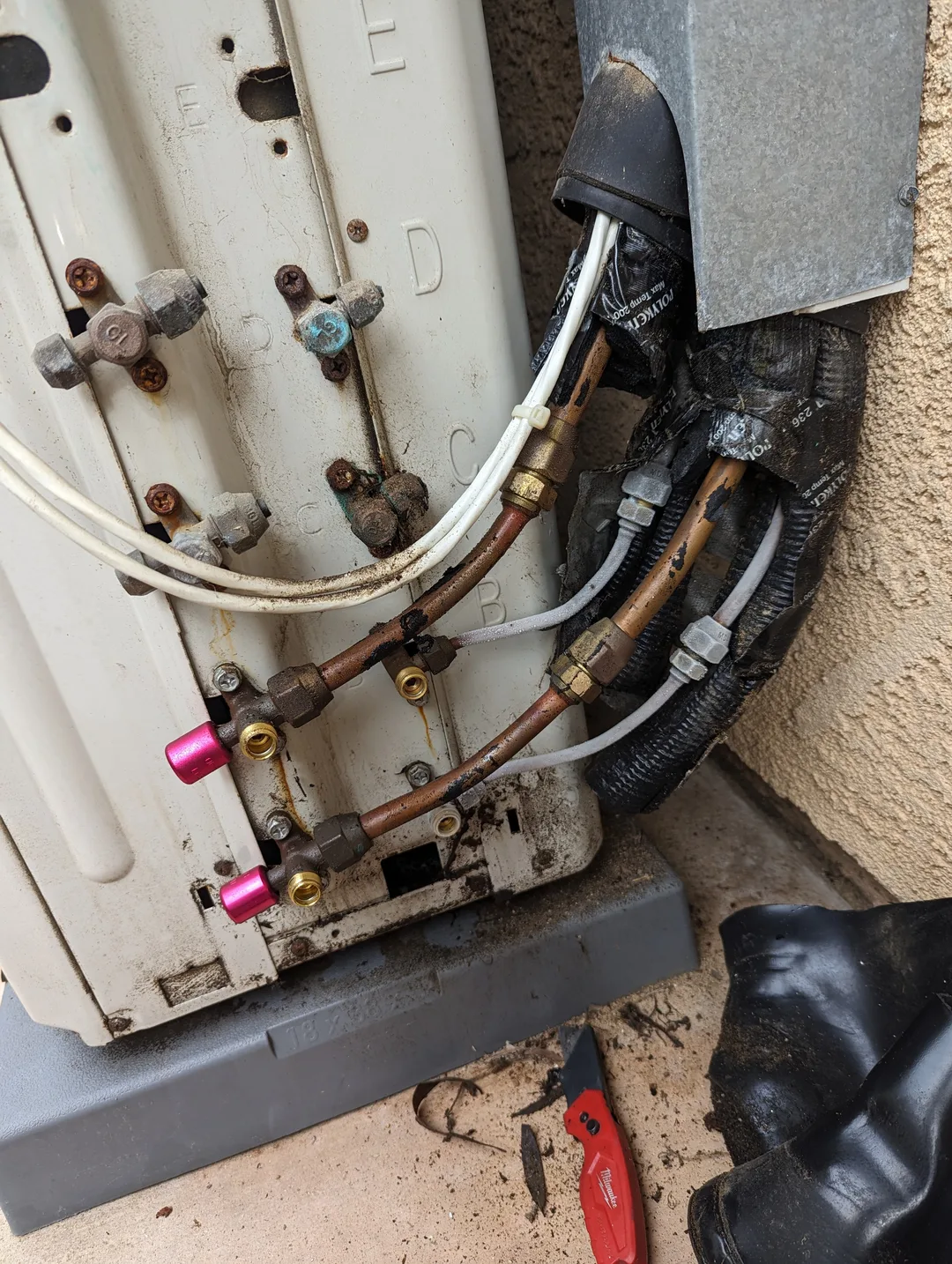

Oil around a refrigerant connection can be a useful clue because oil can escape with leaking refrigerant. Here, the copper lines were oily, and frost was another reason to investigate the refrigerant circuit.

I also found more connections than I would have liked to see. My suspicion is that the original lines were cut too short and then extended. Avoidable joints create more places that may eventually need attention. A better-planned route could have reduced that complexity.

Oil and frost help guide the diagnosis; confirming the leak and the operating condition still takes testing.

Refrigerant-circuit warning signs
Oil residue and frost help guide the investigation.

Contact damage to the copper and insulation

Repairs 03

A line set pulled too tight

This is another installation detail that became a repair problem. The refrigerant tubing had been pulled tight enough to damage both the insulation and the copper where it contacted the cabinet.

My suspicion is that the lines had been cut too short during installation. Whatever the starting point, the tubing needed clearance and relief from that contact. Replacing insulation alone would leave the damaged copper underneath and the cause still in place.

Contact damage to insulation and copper
The cause needs attention as well as the damaged material.

Repairs 04

A tight space. A compressor worth replacing.

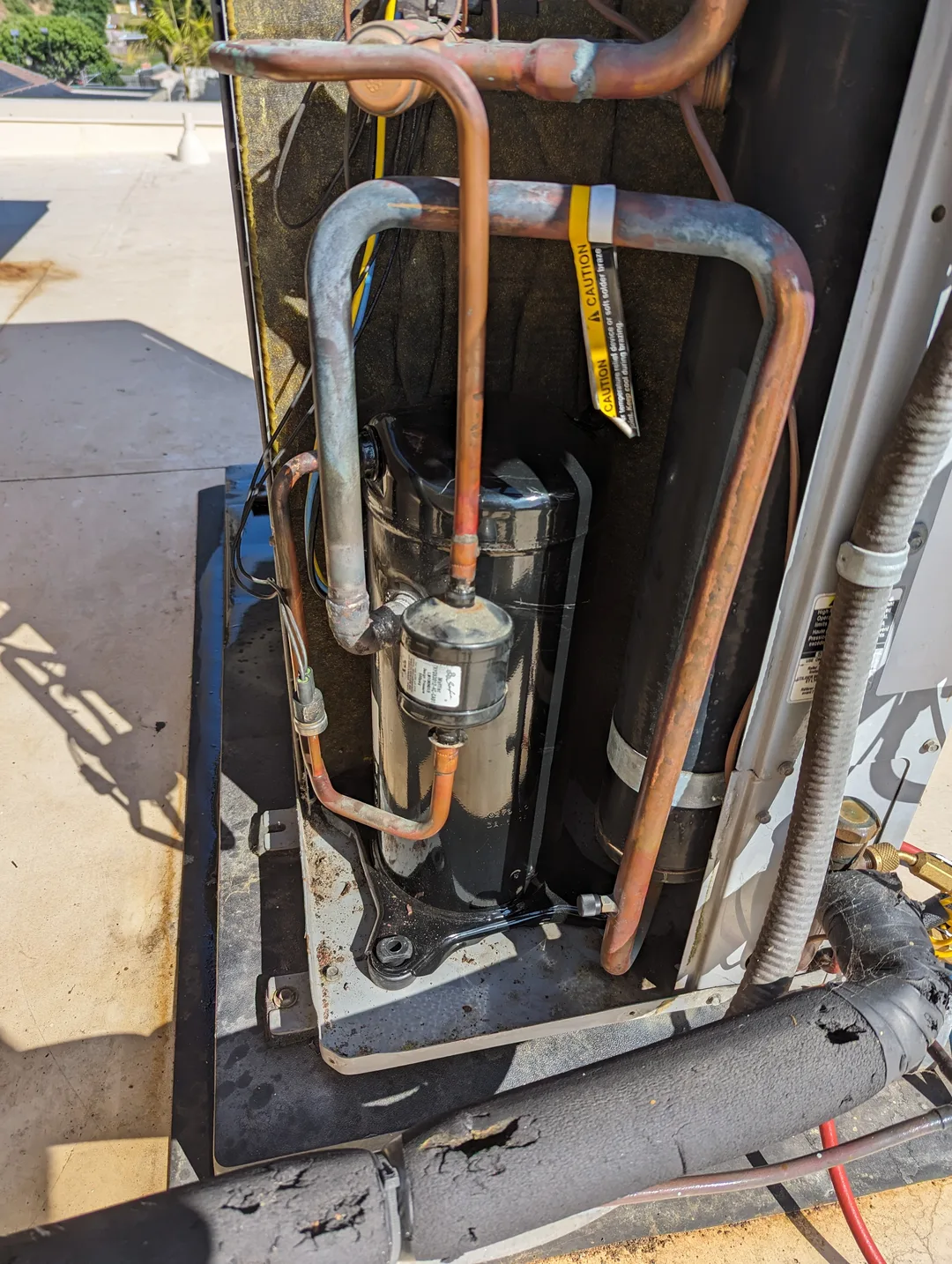

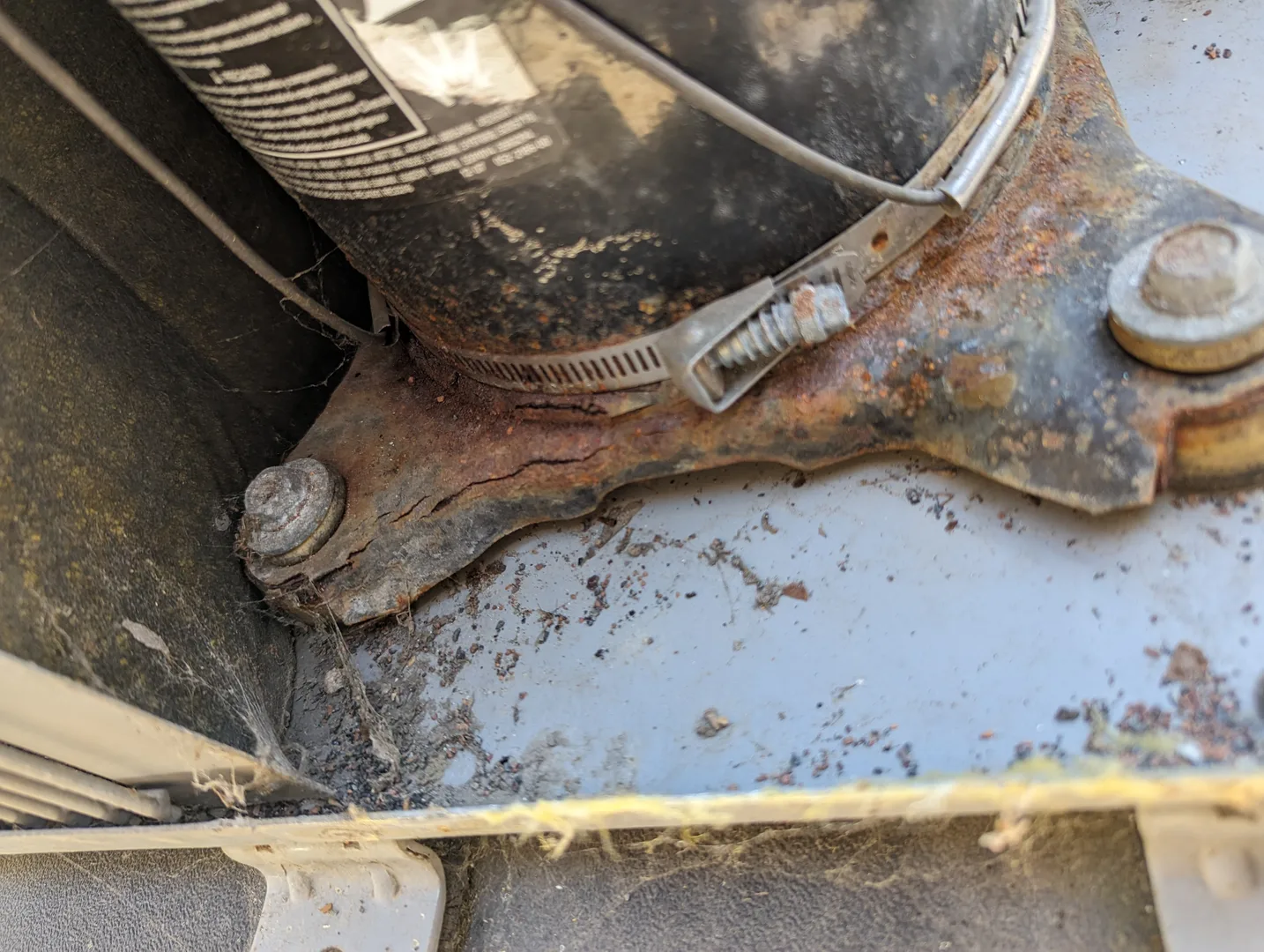

Another compressor replacement from my work archive. The compact layout of this inverter unit made access difficult, but the system was less than ten years old. The old compressor had already suffered substantial corrosion.

I prefer to look seriously at restoring equipment like this before recommending replacement. When the rest of the system is sound, parts are available, and the repair makes financial sense, a new compressor can give a useful system more years of service. Age alone does not make that decision for me.

Compressor replacement
Corrosion in the old compressor and the replacement work.

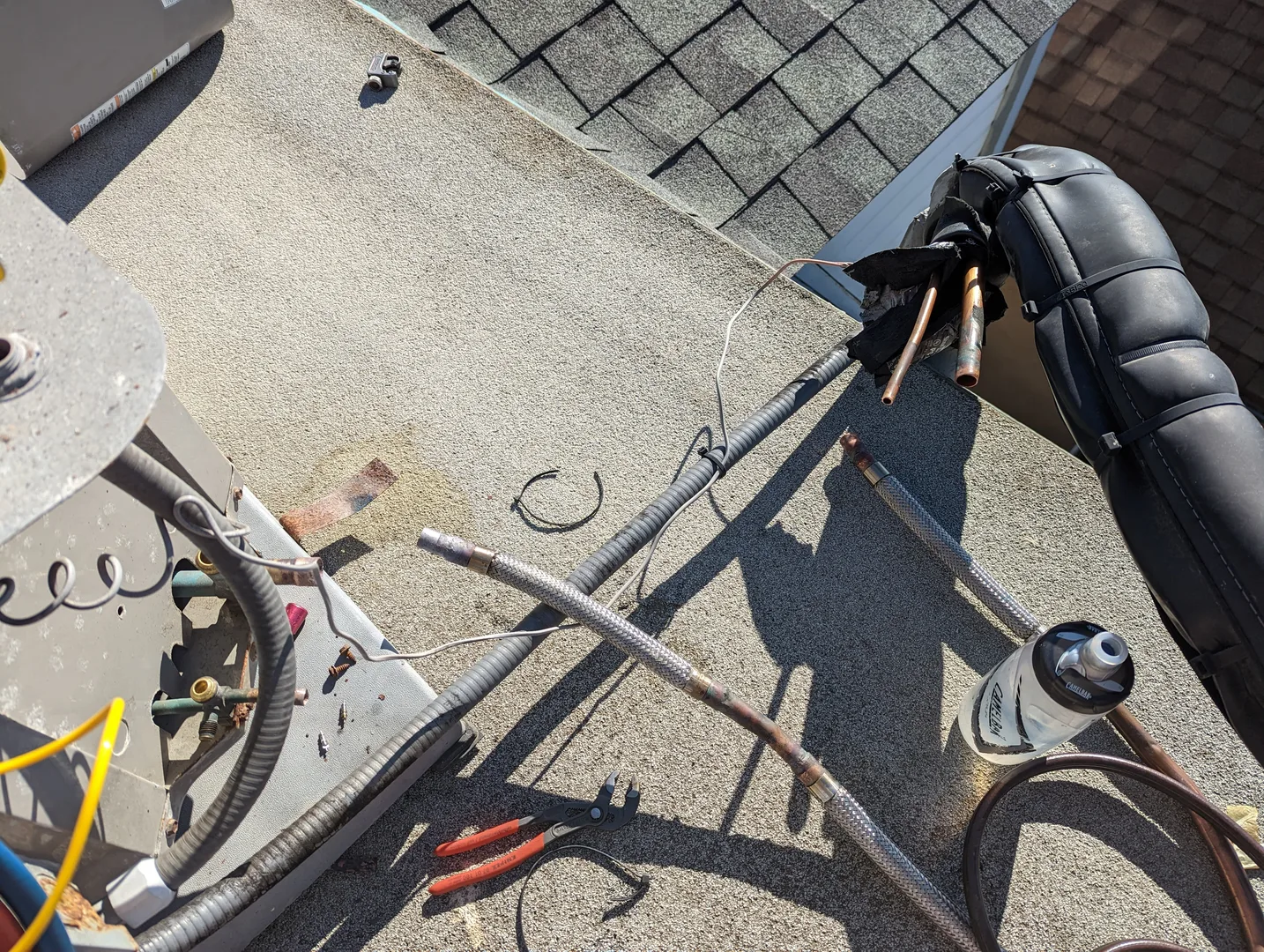

Repairs 05

Simplifying an old vibration workaround

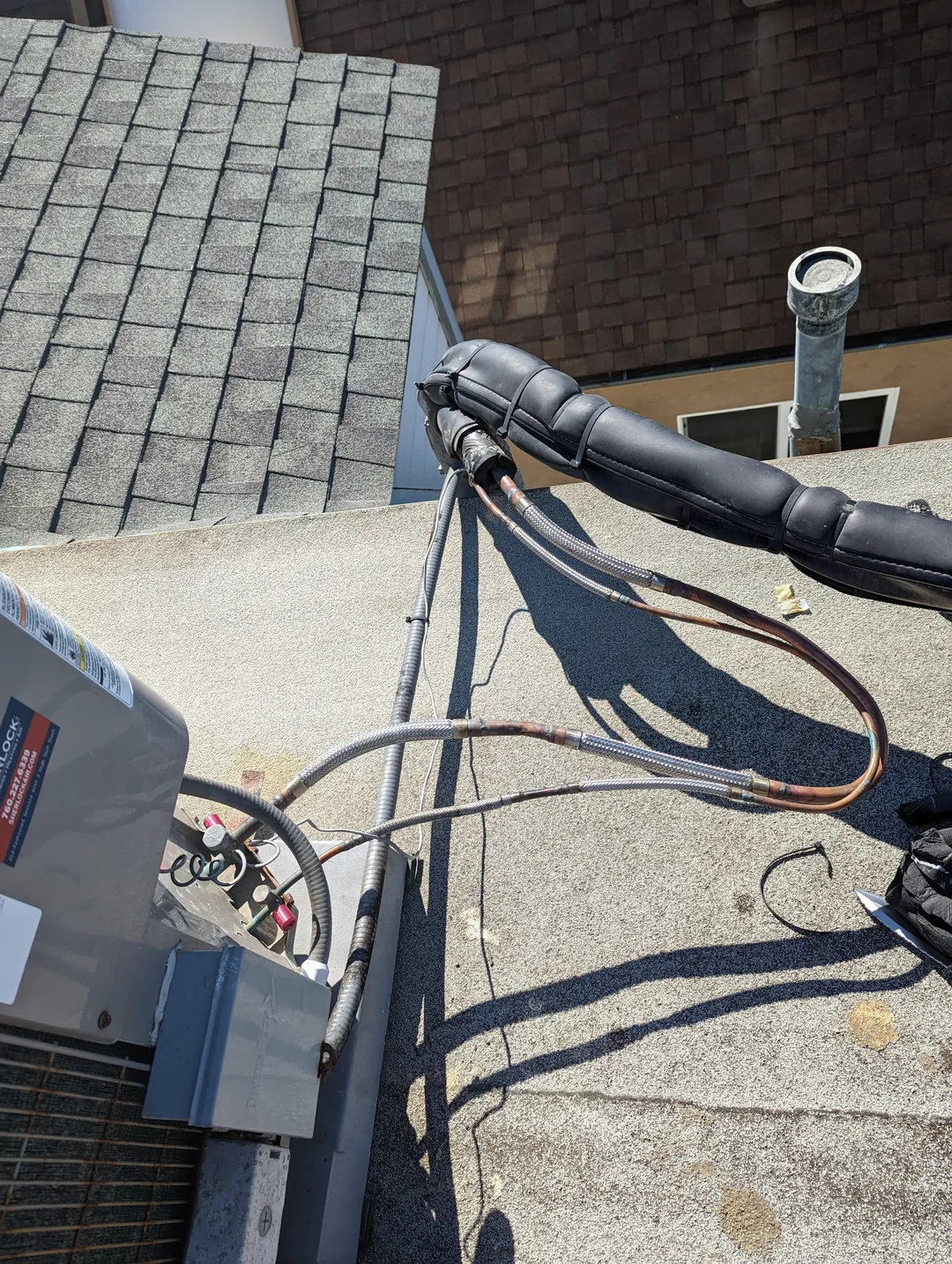

Years earlier, this rooftop system had needed an elaborate solution to refrigerant-line vibration. Rubber isolation under the outdoor unit had not stopped vibration traveling through the piping into the home, so flexible sections were added to the lines.

A later outdoor-unit replacement no longer needed that arrangement, but the old piping was left in place. Over time, those connections developed leaks. I removed the unnecessary sections and rerouted the lines more directly to suit the replacement unit.

One less complication, one more system repaired.

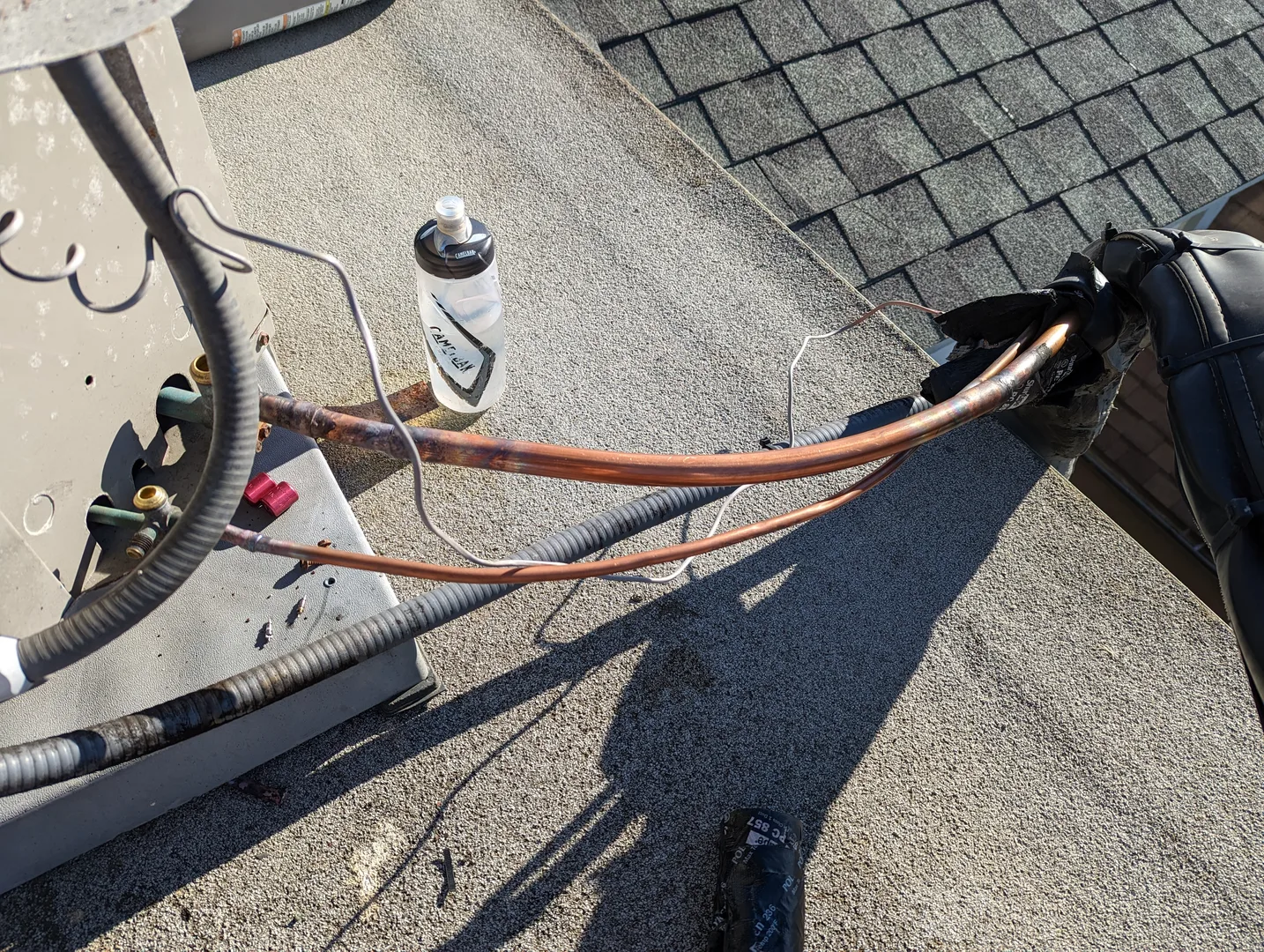

Simplified refrigerant piping
The leaking vibration-control arrangement was removed and the piping rerouted to suit the newer unit.

Improvements

Installation details I would approach differently.

Extra turns in rooftop refrigerant piping

Improvements 01

Why the extra turns?

This rooftop installation left me wondering why the suction line had been routed through two extra 90-degree turns. With room available, I would have preferred a smoother route running alongside the other refrigerant line.

Unnecessary fittings add resistance to refrigerant flow and more joints to the system. The right route still has to meet the manufacturer's requirements for line sizing, support, and oil return. Good piping is deliberate—not simply the shortest path someone can force into place.

Extra bends in the suction line
An opportunity for more deliberate routing.

Diagnostic Findings

Small clues behind frustrating problems.

Diagnostic Findings 01

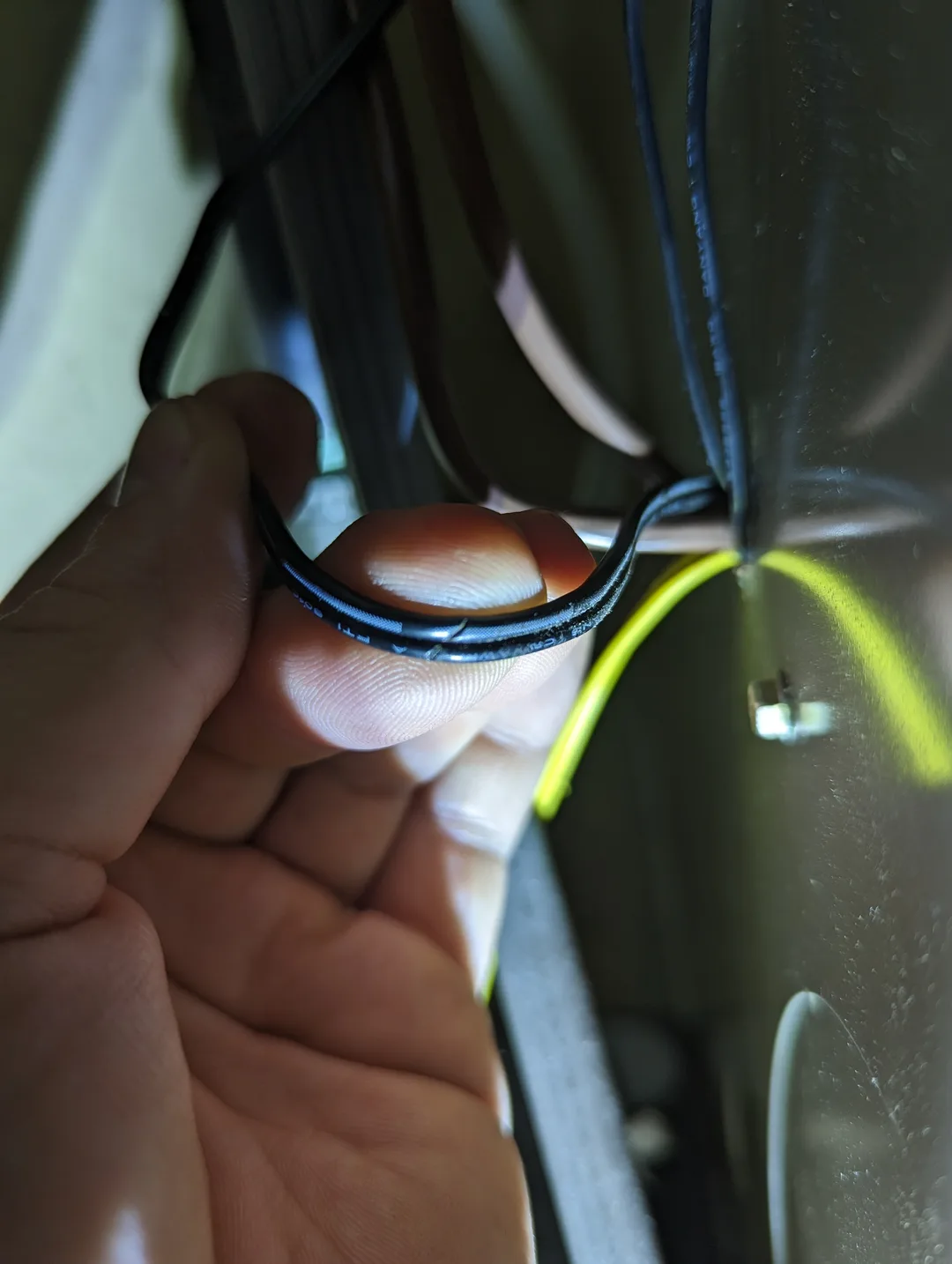

A small wire. A big mystery.

The new system had heated the home through its first winter, then refused to cool when summer arrived. The cause was a wire from the condensate safety switch that had been pinched by the cover during installation.

It sounded simple once I found it. Finding it was the hard part: the equipment and the switch could each test correctly on their own, while the problem was in the wiring between them.

I always enjoy finding a fault like this. The customer enjoyed the modest repair bill even more.

Pinched safety-switch wire
A small wiring fault behind a frustrating cooling problem.

Miscellaneous

Memorable equipment and moments from the field.

Miscellaneous 01

Older than me. Still worth a diagnosis.

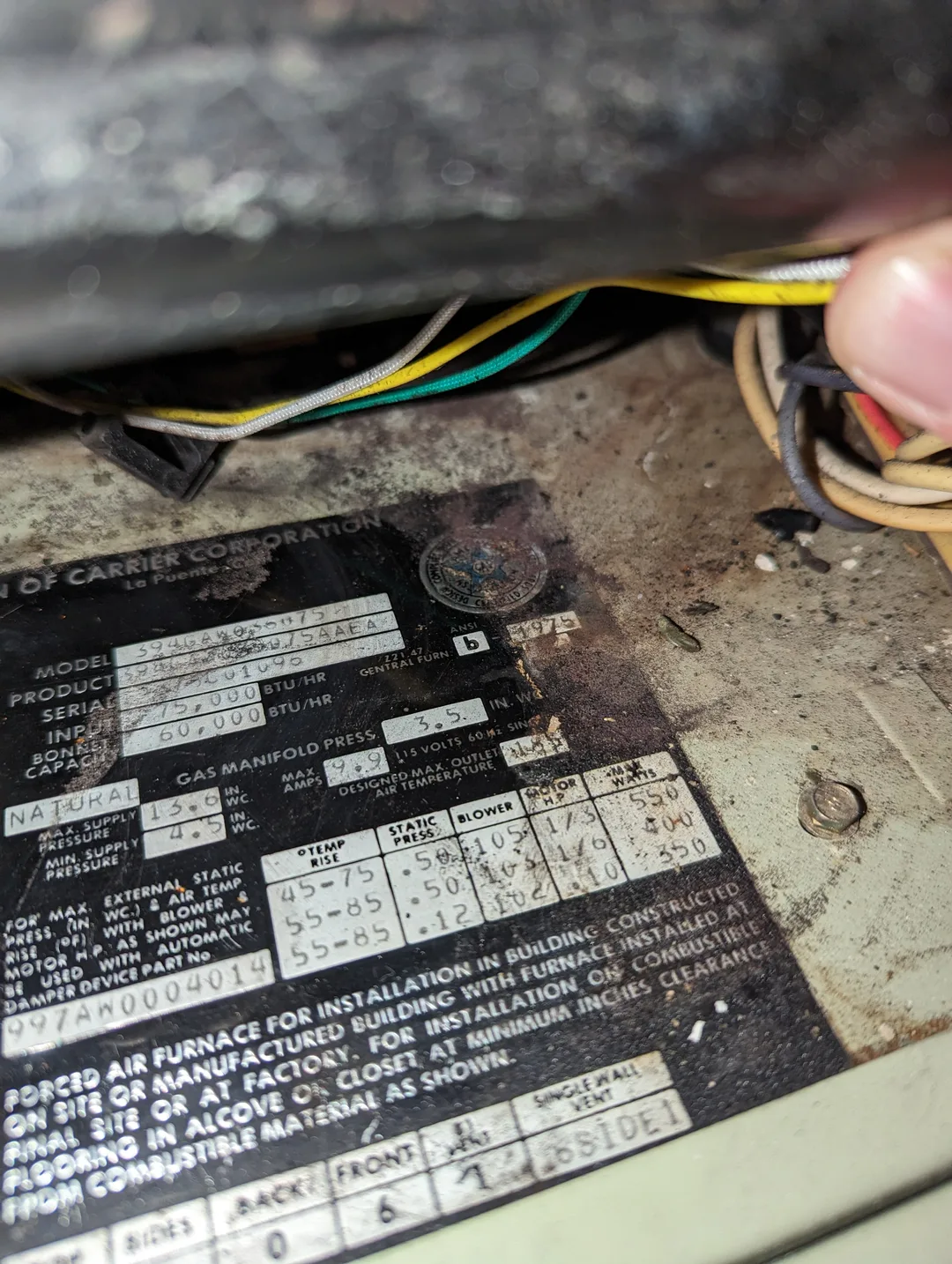

I always enjoy getting equipment older than me running again. This furnace is one of those memorable cases. An old nameplate does not replace a proper inspection, and age alone does not tell me whether a repair makes sense.
